• 3-passenger custom cloth 40/20/40 reclining front split bench seat w/center fold-down storage armrest, manual driver/passenger lumbar, adjustable outboard head restraints, front seatback storage pockets
• Air conditioning
• Auto programmable pwr door locks w/backlit switches
• Color-keyed cloth headliner
• Color-keyed full floor carpeting w/front/rear rubber floor mats
• Color-keyed soft vinyl door trim panels w/cloth inserts-inc: map pockets w/carpeted trim, door reflectors
• Cruise control
• Driver message center warnings-inc: trans overheat, low fuel, low coolant, vehicle security, oil level/pressure/change needed
• Dual coat hooks
• Dual color-keyed padded cloth sunshades-inc: driver storage pocket, passenger mirror, visor extenders
• Dual covered pwr points
• Dual rear cup holders
• Dual seat-mounted cup holders
• ETR AM/FM stereo w/compact disc-inc: seek-scan, digital clock, auto tone control, theft lock, speed compensated volume, 6 speakers
• Illuminated entry
• Leather-wrapped steering wheel
• Lighting-inc: dome w/delayed entry feature, ashtray, glove box, underhood
• LS decor
• Mini overhead console w/map lights
• Passenger assist handles
• Passlock II theft deterrent security system
• Pwr windows
• Rear passenger heat ducts
• Tilt steering wheel
• Warning tones-inc: key-in-ignition, seat belt, headlamp, turn signal

• 105 amp alternator
• 2 front tow hooks
• 26 gallon fuel tank
• 4-wheel anti-lock brake system
• 8-lead trailering wire harness
• 8600# GVWR (4410 front/6000 rear), springs (4500 front/6000 rear), axles (4500 front/6000 rear)
• Aluminized stainless steel exhaust system
• Autotrac active transfer case
• Double-wall steel construction 6.5' pickup box w/extensive corrosion protection
• Four wheel drive
• Front stabilizer bar
• Full-size spare tire w/steel wheel
• HD 600 CCA battery
• Independent front suspension w/torsion bars
• LT245/75R16E all-season SBR BSW tires
• Multi-leaf spring rear suspension
• Pwr 4-wheel disc brakes
• Pwr steering
• Under-body mounted locking winch-type spare tire carrier

• 4-wheel anti-lock brake system
• Daytime running lamps
• Driver & front passenger airbags
• Head restraints at outboard seating positions
• High/low note horn
• Manual lap safety belts, center seat positions
• Manual lap/shoulder safety belts, front/rear outboard seat positions
• Side door guard beams

CUSTOM CLOTH SEAT TRIM

• (STD)

6.0L (364) SFI V8 (VORTEC) ENGINE

• (STD)

SOLAR-RAY DEEP TINTED GLASS

• rear window/ door glass

ELECTRICAL CONVENIENCE PKG

• auto-dimming rearview mirror w/compass & outside temp display
• fog lamps

CAMPER PROVISIONS

• fifth wheel/gooseneck trailer wiring w/8-way wiring harness
• 7-way sealed connector

HD TRAILERING SPECIAL EQUIPMENT

• weight-distributing hitch platform
• aux trans cooler
• 7-lead wiring harness
• high capacity air cleaner

4-SPEED AUTOMATIC TRANSMISSION W/OD

• HD aux trans oil cooler (w/Z82 Trailering trans temp gauge) (STD)

FRONT 40/20/40 RECLINING SPLIT BENCH SEAT

• center fold-down storage armrest
• manual driver/passenger lumbar (STD)

• HIGH CAPACITY AIR CLEANER
• DUAL 6-WAY PWR SEATS
• CUSTOM CLOTH SEAT TRIM (STD)
• ENGINE BLOCK HEATER
• 6.0L (364) SFI V8 (VORTEC) ENGINE (STD)
• PREFERRED EQUIPMENT GROUP
• SOLAR-RAY DEEP TINTED GLASS -inc: rear window/ door glass
• 3.73 AXLE RATIO
• ELECTRICAL CONVENIENCE PKG -inc: auto-dimming rearview mirror w/compass & outside temp display fog lamps
• CAMPER PROVISIONS -inc: fifth wheel/gooseneck trailer wiring w/8-way wiring harness 7-way sealed connector
• HD TRAILERING SPECIAL EQUIPMENT -inc: weight-distributing hitch platform aux trans cooler 7-lead wiring harness high capacity air cleaner
• (4) POLISHED FORGED ALUMINUM WHEELS
• 4-SPEED AUTOMATIC TRANSMISSION W/OD -inc: HD aux trans oil cooler (w/Z82 Trailering-inc: trans temp gauge) (STD)
• (5) LT245/75R16E ON-OFF ROAD SBR BSW TIRES
• FRONT 40/20/40 RECLINING SPLIT BENCH SEAT -inc: center fold-down storage armrest manual driver/passenger lumbar (STD)
• Four Wheel Drive
• Tow Hooks
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Conventional Spare Tire
• Power Steering
• 4-Wheel Disc Brakes
• ABS
• Daytime Running Lights
• Power Mirror(s)
• Third Passenger Door
• Fourth Passenger Door
• Intermittent Wipers
• Cloth Seats
• Split Bench Seat
• Driver Adjustable Lumbar
• Passenger Adjustable Lumbar
• Pass-Through Rear Seat
• Rear Bench Seat
• Floor Mats
• Leather Steering Wheel
• Adjustable Steering Wheel
• Immobilizer
• Cruise Control
• Power Door Locks
• Power Windows
• Security System
• Keyless Entry
• Power Door Locks
• A/C
• AM/FM Stereo
• CD Player
• Power Outlet
• Front Reading Lamps
• ABS
• Driver Air Bag
• Passenger Air Bag
• Daytime Running Lights

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 105
• Cooling System
• Total Cooling System Capacity (qts): 14.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4410
• Gross Axle Wt Rating - Rear (lbs): 6000
• Curb Weight - Front (lbs): 3350
• Curb Weight - Rear (lbs): 2250
• Gross Vehicle Weight Rating Cap (lbs): 8600
• Gross Combined Wt Rating (lbs): 14,000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 11,000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1500
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 11,000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2500
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 4500
• Spring Capacity - Rear (lbs): 6000
• Axle Type - Front: Hypoid
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 4500
• Axle Capacity - Rear (lbs): 6000
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.25
• Brakes
• Brake Type: Pwr
• Brake ABS System: Four-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.4
• Tires
• Front Tire Order Code: QIW
• Front Tire Order Code: QIZ
• Rear Tire Order Code: QIW
• Rear Tire Order Code: QIZ
• Spare Tire Order Code: QIW
• Spare Tire Order Code: QIZ
• Front Tire Size: LT245/75R16
• Rear Tire Size: LT245/75R16
• Spare Tire Size: LT245/75R16
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): 2205
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Aluminum
• Front Wheel Material: Chrome
• Rear Wheel Material: Aluminum
• Rear Wheel Material: Chrome
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 49.6
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: LH
• Exterior Dimensions
• Wheelbase (in): 153.0
• Length, Overall w/o rear bumper (in): 237.2
• Width, Max w/o mirrors (in): 79.1
• Height, Overall (in): 96.1
• Overhang, Front (in): 37.0
• Overhang, Rear w/o bumper (in): 47.2
• Front Bumper to Back of Cab (in): 148.1
• Cab to Axle (in): 41.9
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.9
• Ground Clearance, Rear (in): 8.3
• Cargo Area Dimensions

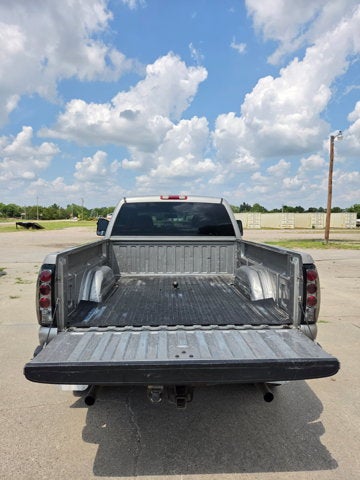

• Cargo Box Length @ Floor (in): 78.7
• Cargo Box Width @ Top, Rear (in): 61.9
• Cargo Box Width @ Floor (in): 64.8
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 19.5
• Tailgate Width (in): 61.9
• Cargo Volume (ft³): 56.9
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.1
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 61.4
• Second Head Room (in): 39.9
• Second Leg Room (in): 38.8
• Second Shoulder Room (in): 65.1
• Second Hip Room (in): 62.9
• Summary

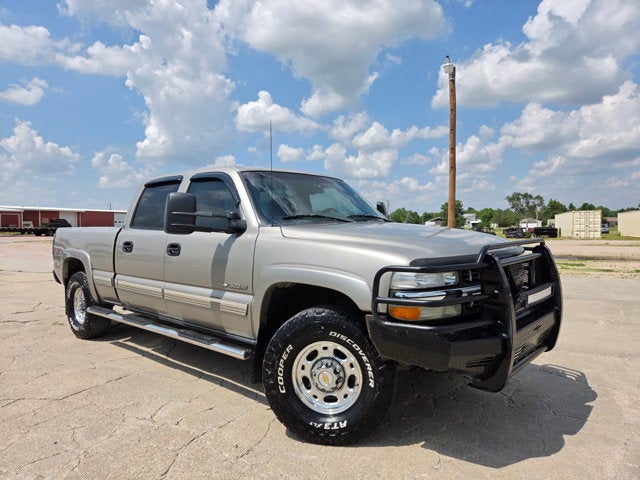

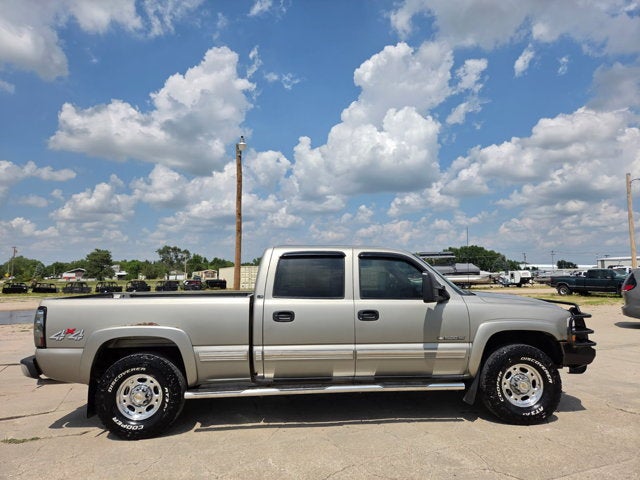

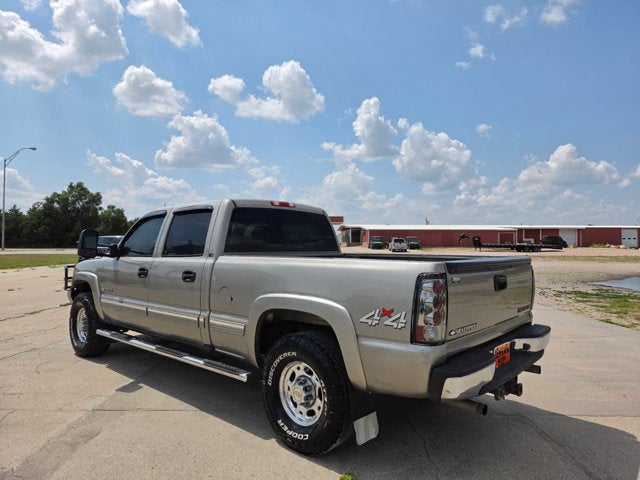

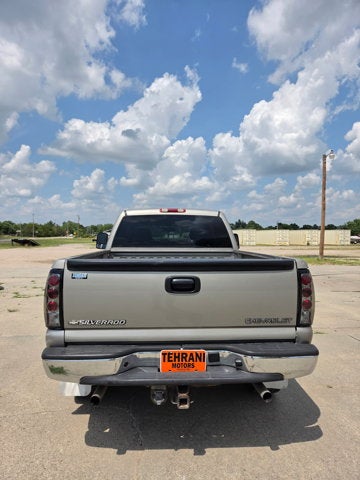

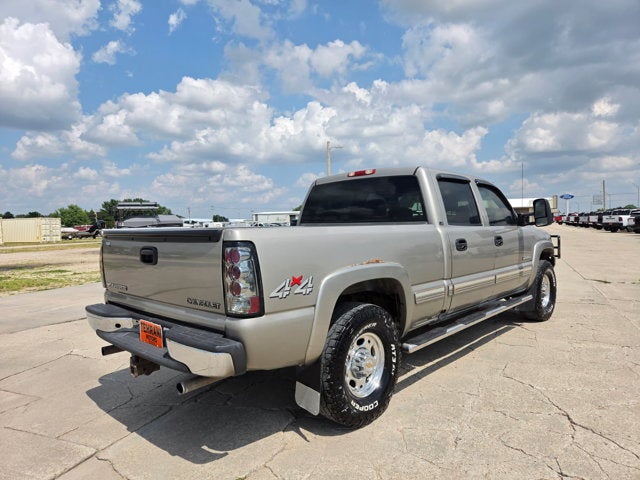

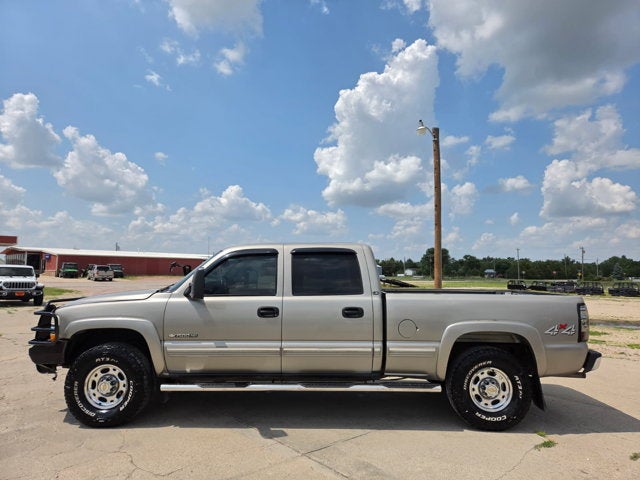

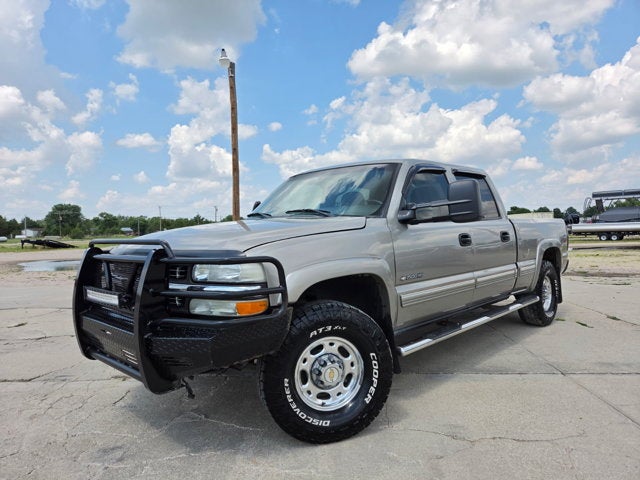

• Vehicle Name: Chevrolet Silverado 1500HD
• Body Style: Crew Cab 6.5' Fleetside
• Body Code: E63
