• (4) air registers w/positive shut-off
• 11.5" day/night mirror
• Accessory delay
• Air conditioning
• Auxiliary pwr point
• Black vinyl steering wheel
• Color-keyed carpet full-floor covering
• Color-keyed cloth sun visors-inc: LH strap, RH mirror
• Color-keyed instrument panel w/dual cupholders/glove box/ashtray/cigar lighter
• Color-keyed molded cloth headliner
• Color-keyed molded door trim panel-inc: soft armrest, grab handle,reflector, upper vinyl insert, carpeted map pocket
• Color-keyed scuff plates
• Dual color-keyed coat hooks
• Dual dome lamps w/time delay off
• Dual map lights
• Electronic AM/FM stereo radio w/cassette-inc: digital clock, (4) speakers

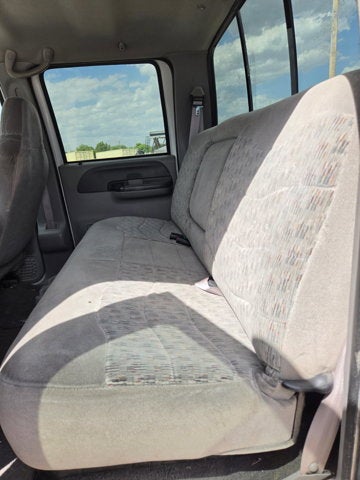

• Forward-folding rear flight bench seat
• Front passenger assist handle
• Front/rear color-keyed carpeted floor mats
• Grab handles mounted over rear doors
• Gray fabric back panel cover

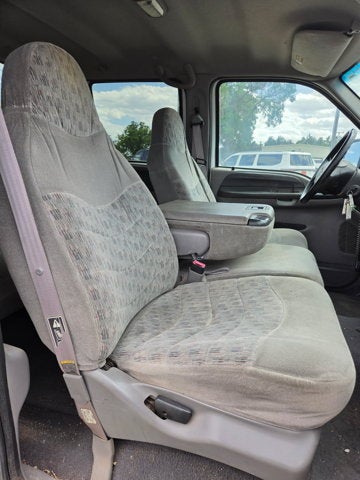

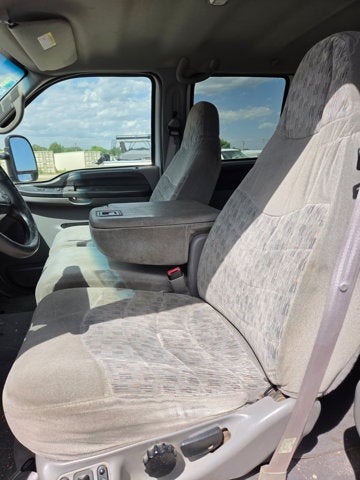

• High series cloth 40/20/40 split bench seat-inc: armrest, storage, integral headrests for outboard seating positions
• Inside hood release
• Instrumentation-inc: tachometer, trip odometer, voltmeter, oil pressure/ coolant temp/fuel gauges, indicator lights
• Pwr door locks w/backlit switches
• Pwr windows w/driver one-touch-down/backlit switches
• Speed control
• Tilt steering column
• Underhood service light

• (2) front tow hooks
• (4) 16" x 7.0" deluxe forged aluminum wheels
• (5) LT265/75R16E all-season SBR BSW tires
• 130 amp alternator
• 2-speed transfer case
• 3.73 axle ratio
• 78 amp/hr (750 CCA) maintenance-free battery
• 9,900# GVWR (4700 front/6830 rear), springs (4700 front/6830 rear), axles (4700 front/6830 rear)
• Four wheel drive
• Front stabilizer bar
• Full-size spare tire w/steel wheel, lock, underframe crank carrier
• HD gas shock absorbers
• Manual locking front hubs
• Mono-beam front axle
• Pwr 4-wheel disc brakes w/rear wheel anti-lock system
• Pwr steering
• Trailer tow pkg-inc: 7-wire harness, trailer brake wiring kit

• Color-keyed safety belts w/front seat adjustable D-rings
• Driver & front passenger airbags
• Dual-note horn
• Rear wheel anti-lock braking system

7.3L (444) DI V8 TURBO-DIESEL ENGINE

• 115 amp alt
• dual 78 amp/hr batteries
• engine block heater
• exhaust back pressure valve

• 7.3L (444) DI V8 TURBO-DIESEL ENGINE -inc: 115 amp alt dual 78 amp/hr batteries engine block heater exhaust back pressure valve
• Four Wheel Drive
• Tow Hooks
• Tires - Front All-Season
• Tires - Rear All-Season
• Aluminum Wheels
• Power Steering
• 4-Wheel Disc Brakes
• Intermittent Wipers
• Cloth Seats
• Split Bench Seat
• Rear Bench Seat
• Floor Mats
• Adjustable Steering Wheel
• Power Windows
• Power Door Locks
• Cruise Control
• A/C
• AM/FM Stereo
• Cassette
• Power Outlet
• Front Reading Lamps
• Driver Air Bag
• Passenger Air Bag

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 115
• Maximum Alternator Capacity (amps): 130
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 20.0
• Total Cooling System Capacity (qts): 26.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Front (lbs): 4000
• Gross Axle Wt Rating - Rear (lbs): 6830
• Curb Weight - Front (lbs): 3531
• Curb Weight - Rear (lbs): 2476
• Gross Vehicle Weight Rating Cap (lbs): 9900
• Gross Combined Wt Rating (lbs): 20,000
• Gross Combined Wt Rating (lbs): 13,500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1000
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 14000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3500
• Suspension
• Suspension Type - Front: Single Leaf
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Front (lbs): 4000
• Spring Capacity - Rear (lbs): 6830
• Axle Type - Front: Dana Monobeam
• Axle Type - Rear: Ford Full-Floating
• Axle Capacity - Front (lbs): 5200
• Axle Capacity - Rear (lbs): 6830
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Power
• Brake ABS System: Rear Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.03 x - TBD -
• Rear Brake Rotor Diam x Thickness (in): 12.83 x - TBD -
• Tires
• Front Tire Order Code: T43
• Rear Tire Order Code: T43
• Front Tire Size: LT265/75R16E
• Rear Tire Size: LT265/75R16E
• Spare Tire Size: LT265/75R16E
• Front Tire Capacity (lbs): 3415
• Rear Tire Capacity (lbs): 3415
• Spare Tire Capacity (lbs): 3415
• Revolutions/Mile @ 45 mph - Front: 655
• Revolutions/Mile @ 45 mph - Rear: 655
• Revolutions/Mile @ 45 mph - Spare: 655
• Wheels
• Front Wheel Size (in): 16 x 7.0
• Rear Wheel Size (in): 16 x 7.0
• Spare Wheel Size (in): 16 x 7.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Power
• Steering Ratio (:1), On Center: 17.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 56.6
• Turning Diameter - Wall to Wall (ft): 59.2
• Frame
• Frame Type: Ladder-Type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 29
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 156.2
• Length, Overall w/o rear bumper (in): 241.4
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 81.2
• Overhang, Front (in): 37.4
• Overhang, Rear w/o bumper (in): 47.8
• Front Bumper to Back of Cab (in): 153.6
• Cab to Axle (in): 40.0
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 37.2
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 82.4
• Cargo Box Width @ Top, Rear (in): 64.6
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 20.0
• Tailgate Width (in): 65.0
• Cargo Volume (ft³): 64.7
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.4
• Front Leg Room (in): 40.7
• Front Shoulder Room (in): 68.0
• Front Hip Room (in): 67.4
• Second Head Room (in): 41.0
• Second Leg Room (in): 42.5
• Second Shoulder Room (in): 68.0
• Second Hip Room (in): 67.3
• Summary

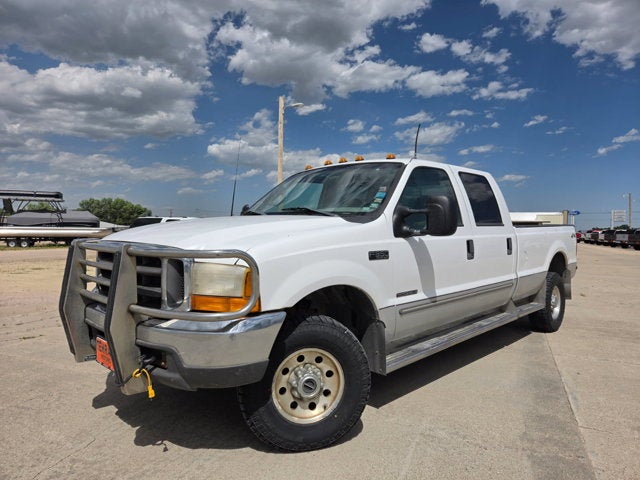

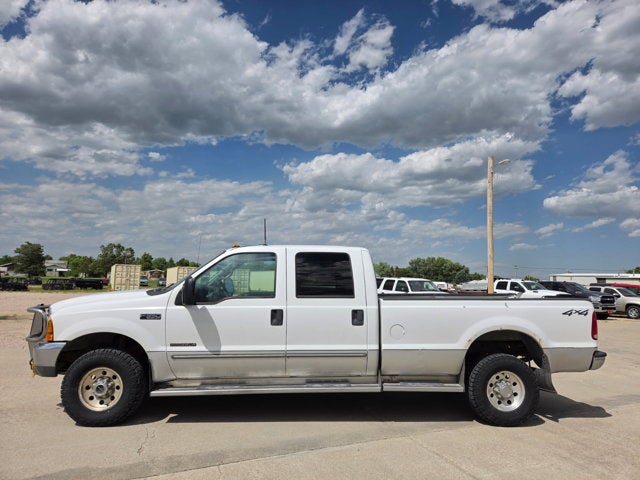

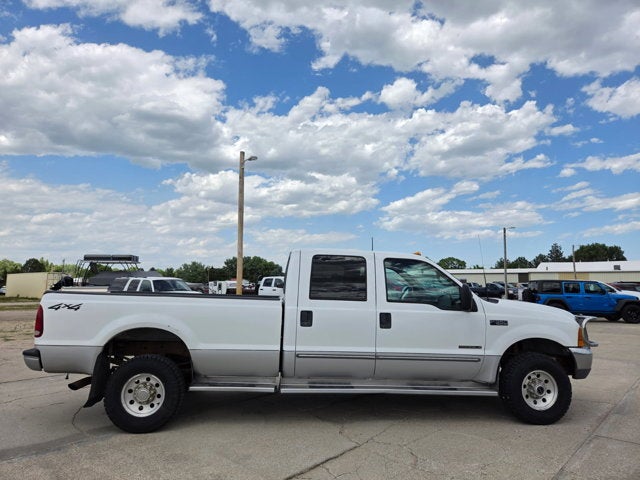

• Vehicle Name: Ford Super Duty F-350 SRW
• Body Style: Crew Cab 6-3/4'
• Body Code: 156" WB
